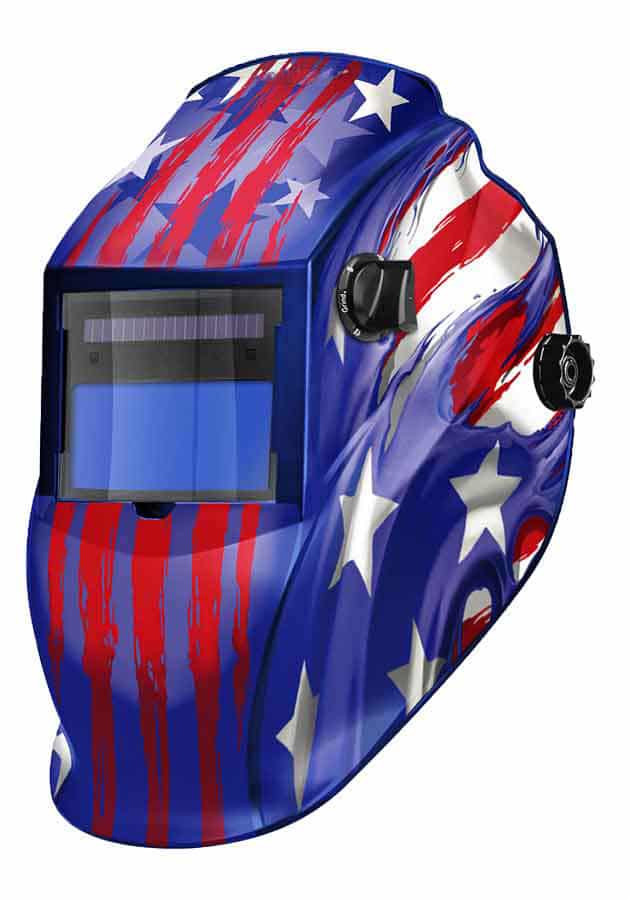

The Cornwell MMW77VG features 3 variable shade with grind function for use in a variety of applications including MIG, Pulse MIG, TIG, Pulse TIG AC and DC to 2 amps, Stick, Plasma cutting, Air Carbon Arc cutting, Oxyfuel welding and cutting and grinding. With ANSI and CSA approval this MMW77VG Auto-darkening welding helmet is safe and functional for the above welding applications.
Specs:
Variable Shade Selection From 5-8 And 9-13
Grind Mode For Protection While Grinding
Dial sensitivity and delay adjustment
3.74" X 2.44" Viewing Area
Opticlear™ shade 3 light state for easier set up and grinding
Fast 1/25,000 sec. Switching Time
UV/IR Protection To Shade 16
Auto On/Off
Solar Power Supply, Replaceable Battery CR2450
Low Amp Tig and DC TIG to 2 Amps
4 Arc Sensor
6 Point Adjustment Articulating Head Gear
Large Removable/Washable Sweatband
ANSI and CSA Approval
Comes complete with:
One Extra Outside Cover Lens
Operator’s Manual
Replacement Parts:
MMWLK75 - Lens Cover Kit (4 outer/2 inner)+Gasket
MMWMHG8L - Head Gear
MMWSB2 - Sweat Band Bundle
MMW730L - Replacement Lens
MMWRW5+7 - Retaining Wire
MMWCR2450R - Batteries (2 pcs)
MMWBC75 - Battery Cover
MMWML150 - Magnifying Lens 1.5
MMWML200 - Magnifying Lens 2.0
MMWML250 - Magnifying Lens 2.5
