WELDING

Cornwell Tools Multi-Process MIG/TIG/Stick Welder MMWMP242DVIK



The Cornwell MMWMP242DVIK is a Dual Voltage portable DC inverter wire feed welder capable of welding with solid wire (with shielding gas) or with flux core wire. This machine also has smooth DC Stick capabilities and the ability to perform lift start DC TIG welding on steel and stainless steel materials with the included TIG Torch. This unit also comes complete with a Spool Gun, designed for easier feeding of tough to feed MIG wires such as aluminum. This unit is capable of MIG welding 5/16” steel in a single pass when operating on 230V power. Use the included 120V adapter cord to run this unit off 120V AC power with a single pass MIG welding capacity of 3/16”. It uses leading edge Inverter Technology to provide high quality welds that are crisp, clean, and consistent with plenty of power and will impress the most experienced of welders. Its unique user interface utilizes an LCD screen and advanced software to preset and memorize previously set welding parameters, spot time settings, and trigger hold settings. With the ability to load and save programs. The Inverter Technology is evident from the moment you take this unit out of the box. One of the many advantages of inverter technology is creating more welding power from a smaller transformer. The MMWMP242DVIK welds between 24 gauge and 5/16" steel in a single pass. Stick weld with electrodes up to 5/32 inch with this exceptionally smooth DC stick welding output. Stick weld on materials such as steel, stainless steel, cast iron, hard facing and aluminum. This unit is an exceptional Multi-Process machine. Typical applications for the MMWP241DVIK include auto repair, farm and ranch, and light industrial applications.

Specs:
Multi-Process, Dual, Voltage portable DC Inverter welder with LCD interface and the ability to load and save programs
Dual Voltage - 120V, 20A 50/60 Hz or 230V, 36A 50/60 Hz Single Phase Input Power
No load voltage 69V40 to 200A Output
DC Stick output range of 30-170 Amps
40% @ 90A (120V Power) - 20% @ 200A (230V Power)
Overall dimensions: 28.75" x 12.6" x 18.9"
Weight: 40 lbs

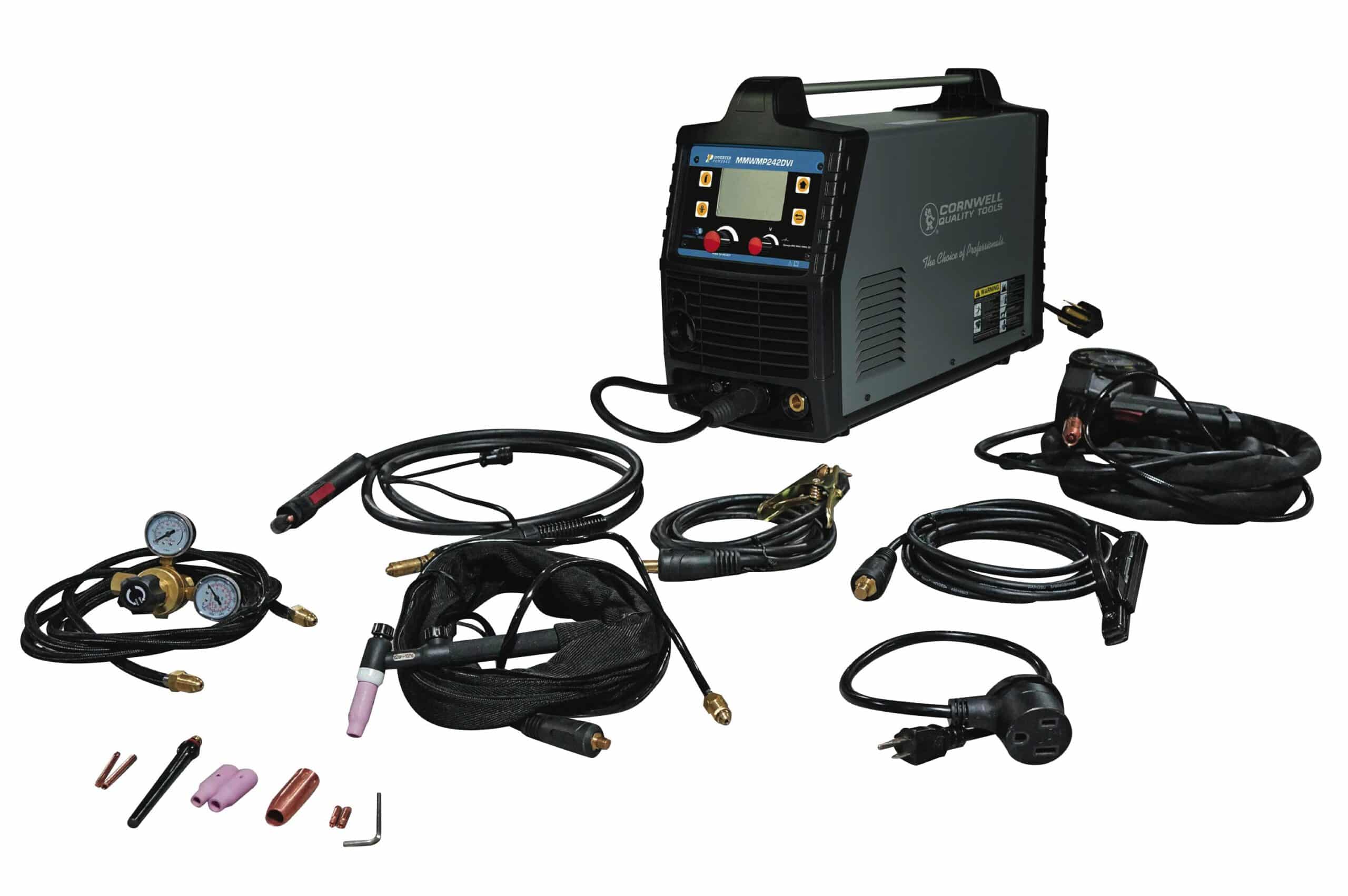

Comes complete with:
LCD Front Panel Controls
Spool Gun
MIG Torch
Gas Hose
Gas Regulator/Flow gauge
Ground Cable And Clamp
Electrode Holder And Cable
TIG Torch
Operator’s Manual


Replacement Parts:
MMW023 - MIG Contact Tip .023 (5pk)
MMW030 - MIG Contact Tip .030 (5pk)
MMW035 - MIG Contact Tip .035 (5pk)
MMWFC - MIG Flux NozzleMMWMN - MIG Nozzle


Options:
MMWUWC4 - Heavy-Duty Welding Cart
MMWFLEX2 - Flex neck

Installation of the flexible neck
